Disturbance Check Documentation

Introduction

This API allows you to check whether there are any network disturbances for any address in the Netherlands.

API specification

Test the API on SwaggerHub

Base URL

https://api-prd.kpn.com/network/kpn/disturbance-check

Conceptual model

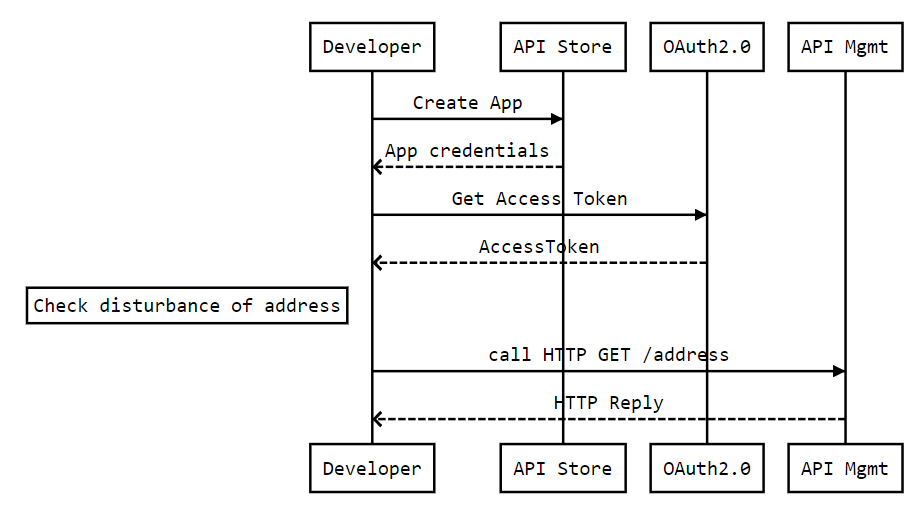

API workflow

Getting started

Make sure you've read What's in it for you for more info on how to register and start testing APIs.

Authentication

The API follows the KPN Store API Authentication Standard to secure the API. It includes the use of OAuth 2.0 client_id and client_secret to receive an access token.

Go to the Authentication tab on top of this page to find out how to:

• Authenticate to an API using cURL.
• Authenticate to an API on Swaggerhub.
• Import Open API Specifications (OAS), also called Swagger files into Postman.

How to...

Check network disturbances for an address

SwaggerHub:

1. Check disturbance GET /address.
2. Click Try it out.
3. Supply zip_code and house_number.
4. Click Execute.
5. Check the response code and message.

Postman:

1. GET (CheckDisturbance).
2. Supply zip_code and house_number.
3. Click Send.
4. Check the response code and message.

If it's a valid address, the result of the call will look like the following:

      Response example

        Code copied





{
  "broadband": [],
  "fixed": [],
  "mobile": [],
  "generic": [
    {
      "id": 196,
      "affected_elements_count": 0,
      "affected_customers_count": 0,
      "communicated_customers_sms_count": 0,
      "communicated_customers_email_count": 0,
      "type": "generic",
      "cause": "disturbance",
      "source": "gui",
      "service": "I-TV",
      "state": "open",
      "start_date": "2017-10-03T15:42:51+02:00",
      "end_date": "2017-10-03T19:42:51+02:00",
      "region": null,
      "description": "Spamfilter does not work",
      "long_description": "<p>Problem with spam filter</p>",
      "info": null,
      "serviceguard_ticket_id": null,
      "created_at": "2017-10-03T15:43:25.217302+02:00",
      "communication_type": null,
      "sms_text": null,
      "user": null
    },
    {
      "id": 197,
      "affected_elements_count": 0,
      "affected_customers_count": 0,
      "communicated_customers_sms_count": 0,
      "communicated_customers_email_count": 0,
      "type": "generic",
      "cause": "disturbance",
      "source": "gui",
      "service": "Webmail",
      "state": "open",
      "start_date": "2017-10-03T15:44:11+02:00",
      "end_date": "2017-10-03T19:44:11+02:00",
      "region": null,
      "description": "Webmail login does not work",
      "long_description": null,
      "info": null,
      "serviceguard_ticket_id": null,
      "created_at": "2017-10-03T15:44:32.038553+02:00",
      "communication_type": null,
      "sms_text": null,
      "user": null
    },
