LoRa Device Management Documentation

Introduction

The LoRa API helps you to manage your LoRaWAN devices and application servers.

KPN’s Low Power Long Range (LoRa) network service complements existing 2G, 3G, 4G and LTE-M networks. It is based on the LoRaWAN protocol for Internet of Things (IoT). The network eliminates significant barriers (such as cost and energy consumption) so that numerous (battery-powered) devices can be connected.

KPN has equipped hundreds of existing mobile transmission towers across the Netherlands with a LoRaWAN gateway and antenna, achieving full coverage of the Netherlands and allowing millions of devices to be connected.

API specification

Test the API on SwaggerHub

Base URL

https://api-prd.kpn.com/data/lora/thingpark

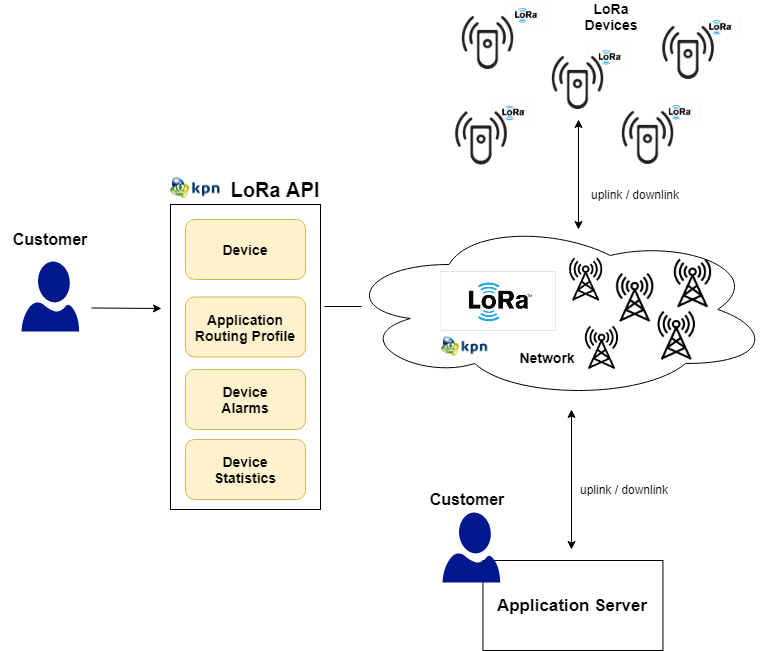

Conceptual model

Definitions

ABP

Activation by personalization. In some cases, you might need to hard code the device address (DevAddr) as well as the security keys in the device.

ABP provisioning is no longer supported and not available in the API. Over-the-Air Activation (OTAA) is the standard.

Application routing profile

Configuration data in the LoRa network referencing the application server of the customer.

Application server

LoRa application server of the customer which is able to receive LoRa uplinks and initiate LoRa downlinks.

Device

A sensor or actuator implementing the LoRaWAN protocol stack. A device is identified by DevEUI, a globally unique IEEE EUI-64 identifier.

DevEUI

The DevEUI is a 64-bit globally-unique Extended Unique Identifier (EUI-64) assigned by the manufacturer, or the owner, of the end-device.

Device alarm

An occurrence out of the ordinary on a device logged by the LoRa network.

HSM group

HSM (High-Security Module). The data in the LoRa platform is protected by an HSM which stores root-keys for the encryption of the device-data. Within the platform, there may be multiple groups of HSMs, but currently only 1 group is present.

The HSM is mandatory for LoRa provisioning by default. If you are not using a HSM, the Legacy interface version 1.1.1 must be used. You can do this by adding following http-header to the request: api-version: v1.1.1

OTAA

Over-the-Air Activation. Devices perform a join-procedure with the network, during which a dynamic device address (DevAddr) is assigned and security keys are negotiated with the device.

Thingpark GUI

The Thingpark GUI by Actility allows you manage your devices in an web GUI. You can also see the LoRa messages sent and received by their devices. You need you Thingpark credentials to use this API.

API workflows

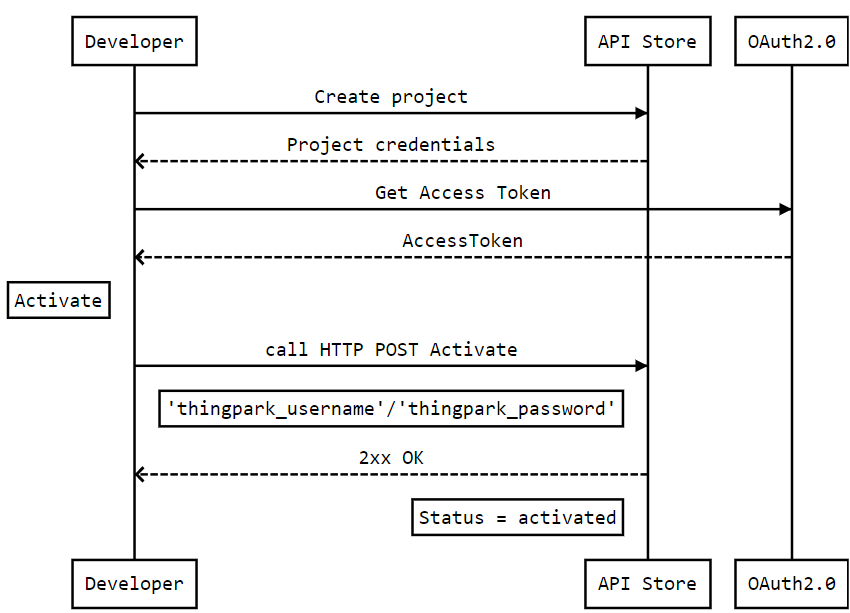

Activate the LoRa API

After you created a project in the KPN Developer Portal we have to match your Thingpark GUI user credentials with your KPN Developer Portal user credentials. We call that 'activation'. You have to do it just once. After that, you can use the project by sending your requests with you KPN Developer Portal access token.

You have to activate each new project because it has a new set of client_id and client_secret.

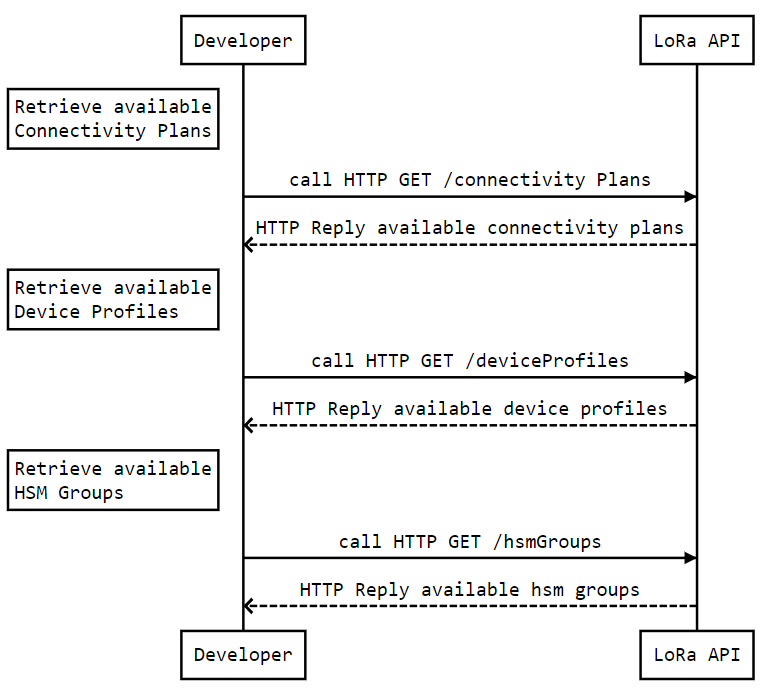

Retrieve LoRa subscription information

Before you provision a device or application routing profile, you can retrieve the available resources in the subscription:

• Connectivity plans: The available connectivity options provided by sales. Includes the number of messages per day and localization feature(s).
• Device profiles: Indicates the type of device. Typically used to optimize the motion indication (is it a static device or is it expected to be moving).
• HSM groups: Indication of available HSMs to be used. Currently, there is only 1 option. The hsmGroupId is needed while creating devices and application routing profiles.

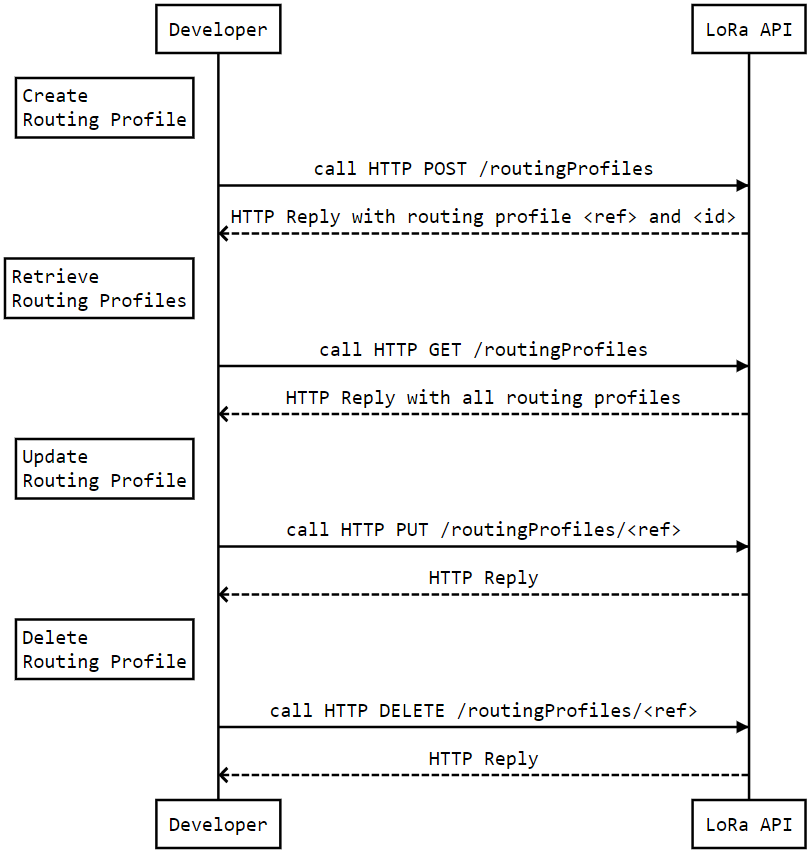

LoRa application routing profile management

The application routing profile is used to configure the application server endpoint and is used and referenced by the LoRa device management in the next section. You will need at least 1 application routing profile pointing to your application server to be able to start creating devices.

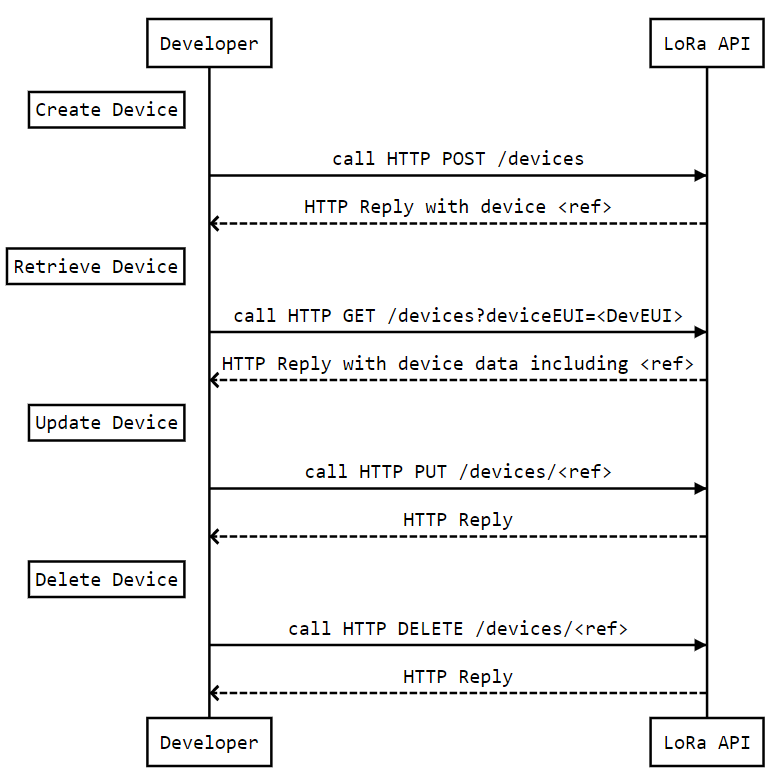

LoRa device management

This workflow provisions the LoRa device into the KPN network. Before you can create a new device you need to know 3 important parameters:

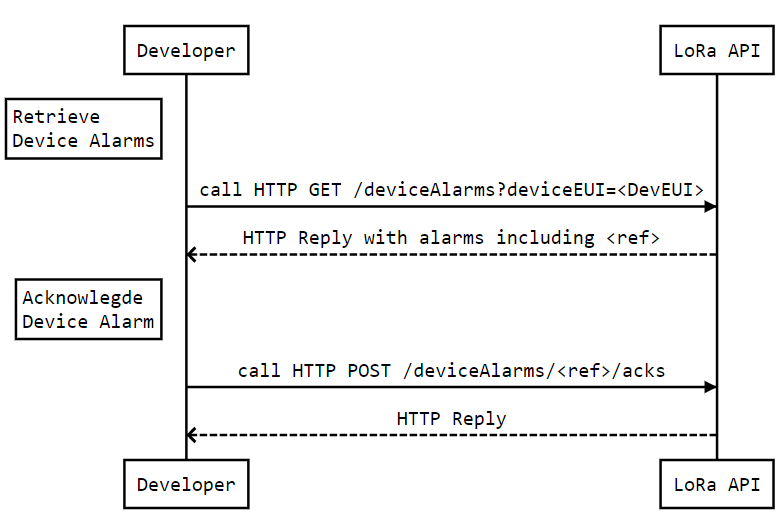

LoRa device alarm management

You can retrieve and acknowledge device alarms by using this workflow.

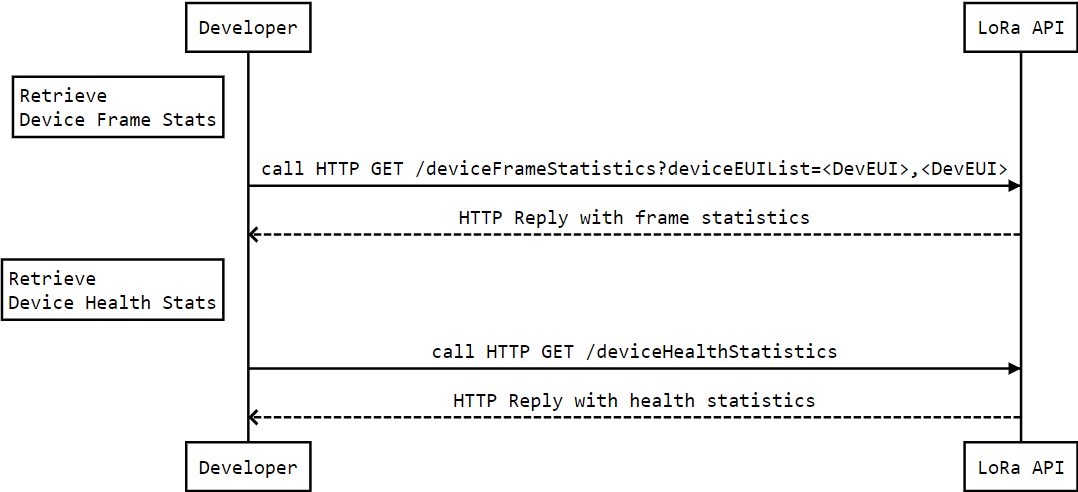

Retrieve LoRa statistics

This workflow retrieves the frame (traffic) statistics and health statistics of the device(s).

Features

• LoRaWan application services mangement.
• LoRa device management.
• LoRa application routing profile management.
• LoRa device alarm management.
• LoRa statistics retrieval.

Getting started

Make sure you've read What's in it for you for more info on how to register and start testing APIs.

Authentication

The API follows the KPN Store API Authentication Standard to secure the API. It includes the use of OAuth 2.0 client_id and client_secret to receive an access token.

Go to the Authentication tab on top of this page to find out how to:

• Authenticate to an API using cURL.
• Authenticate to an API on Swaggerhub.
• Import Open API Specifications (OAS), also called Swagger files into Postman.

How to...

Activate the LoRa API

The following endpoint activates the LoRa API: POST /activate.

Send your Thingpark GUI user credentials in the body of the request to authorize the Developer Portal to make use of your LoRa instance for future LoRa API requests.

      cURL request

        Code copied




{
POST 'https://api-prd.kpn.com/data/lora/thingpark/activate' \
--header 'Authorization: Bearer **' \
--header 'Content-Type: application/json' \
--data-raw '{
	"thingpark_username":"**",
	"thingpark_password":"**"
}

Body parameters

Response

The expected response is 200 OK.

Retrieve LoRa subscription information

The following request retrieves a list of connectivity plans: GET /connectivityPlans.

      Response example

        Code copied




[
    {
        "id": "kpn-acc-ope-cs/testing",
        "ref": "608",
        "name": "kpn-acc-ope Testing CP",
        "grantedConnections": 10,
        "usedConnections": 1,
        "communicationType": "UNICAST"
    },
    {
        "id": "kpn-acc-ope-cs/often-geo-2019",
        "ref": "624",
        "name": "Often Geo 2019eb",
        "grantedConnections": 100000,
        "usedConnections": 0,
        "communicationType": "UNICAST"
    }
]

Create an application routing profile

The following request creates a new routing profile: POST /routingProfiles.

      POST /routingProfiles

        Code copied




{
        "name": "your-routing-profile-name",
        "default": false,
        "hsmGroupId": "HSM_KPN-OPE.1",
        "rsaPublicKey": "-----BEGIN PUBLIC KEY-----MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAn0/KaJwVk7lyRMsGUKiYtnMp4kwo45+eaFB9NnYeZe/I5wnwQKC6goN9C1xQy38alc/rMyUbrhsyUmfYfZTPXSuMtveXS15KR2vZW+MGOeA9Bpr2X/N4dUyPTG6fpEAnIwSCeOor40oVXPPvl4bbOV1EdGm5QXWArl9nUDqmIzu0XzcM/VQVyhT7rHuAcIigXpNeUzGOBLmLFjuEqG2r/3VRW147L1tWr8mogyDv4uV+uHckD4ceIMds7jk9AgwVi4JdZv6nMg2wGX0IaVAnTghjgVmsU5k2azf01U0AWYHbwnEsnixnQhW4Rx71NmiKU2Fflhl/g5e8+ZjZhvCN7QIDAQAB-----END PUBLIC KEY-----",
        "routes": [
            {
                "sourcePorts": "*",
                "strategy": "SEQUENTIAL",
                "contentType": "JSON",
                "asId": "YOUR-AS-ID",
                "asKey": "6dd70c8511e02ac833add9a146f5bf23",
                "addresses": [
                    "https://your-application-server/path/"
                ]
            }
        ]
}

The response will echo the settings and includes some extra parameters:

      Response example

        Code copied




{
    "id": "TWA_100001135.2647",
    "ref": "2647",
    "name": "your-routing-profile-name",
    "default": false,
    "rsaEncryptedASKey": "8e4bda2fda868e536a821ee8930e8ceb3baaa22ea9588c5b220d61acf8678740496923c537aa551bdf13af815bbabb31ce66d3248b9489b7e19cc778b8aac787578b079778722c67908296d157ad21a1bb99eada4f7db48fd51a5276aecc621638d9c7aed50347e7546a13a07d97557413e8505f32d57edb2caaf63849558d01ad60c0c617bb6dcb4cd40e3b3ccff6bf2c50442c539337de01808725ac535ab3dccb77fe635015060984270bbe3d356644a7e8a6574fd726e165818ffb507b8ddfbbe9ce25692cbb69efeb0b024cd45d08e66f0d284bcbac1c56fe95744f3bae89920709ef27d19444f6559de16290da67e67ff85564c8f0cde9c3c4979608be",
    "routes": [
        {
            "sourcePorts": "*",
            "strategy": "SEQUENTIAL",
            "contentType": "JSON",
            "asId": "YOUR-AS-ID",
            "addresses": [
                "https://your-application-server/path/"
            ]
        }
    ]
}

Create a device

The following request creates a new device: POST /devices .

Please note:

• New devices should be provisioned as Over-the-Air Activation (activationType = OTAA).
• New devices should use HSM security (hsmGroupId field must contain a valid value).
• If no routingProfileId or processingStrategyId values are provided, then processingStrategyId will be automatically set to DATAFLOW.
• If no connectivityPlanId value is provided, then the first connectivity plan of the subscriber with available connections will be assigned to the device.

      POST /devices

        Code copied




{
    "name": "Test Device via API",
    "EUI": "0059ac0000170311",
    "activationType": "OTAA",
    "deviceProfileId": "CUSTOM/Static V 1.0 Class A",
    "hsmGroupId": "HSM_KPN-ACC-OPE.1",
    "connectivityPlanId": "kpn-acc-ope-cs/often-geo-2019",
    "routingProfileId": "TWA_100001135.861",
    "applicationEUI": "0000000000000000",
    "applicationKey": "00000000000000000000000000000000"
}

The response will echo the settings and includes an extra parameter:

• ref: API reference for future requests (update/delete/retrieve).

      Response example

        Code copied




{
    "ref": "15532",
    "name": "Test device",
    "EUI": "0059ba0000000002",
    "activationType": "OTAA",
    "deviceProfileId": "CUSTOM/Static V 1.0 Class A",
    "connectivityPlanId": "kpn-acc-ope-cs/often-geo-2019",
    "routingProfileId": "TWA_100001135.2647",
    "applicationEUI": "01234567890abcdef",
    "hsmGroupId": "HSM_KPN-OPE.1"
}

Delete a device

The following request deletes a device: DELETE /devices/{deviceRef}.

You have to pass the ref parameter in the path of the request:

• Use the ref parameter that you saved when the device was created.
• Use the GET method to retrieve the ref parameter again: GET /devices/{deviceRef}

Example path parameters

Retrieve LoRa device alarms

The following request retrieves a list of device alarms:

GET /deviceAlarms

Example request parameter

      Response example

        Code copied




[
    {
        "ref": "5a6717531ffbe425b9c16bb6",
        "alarmState": "MAJOR",
        "occurrence": 1,
        "acked": false,
        "creationTime": "2018-01-23T11:06:59.073+00:00",
        "lastUpdateTime": "2018-01-23T11:06:59.073+00:00",
        "additionalInfo1": "SF12",
        "additionalInfo2": "SF10",
        "additionalInfo3": "13.000000dB",
        "additionalInfo4": "-15.000000dB",
        "deviceRef": "41201",
        "deviceAlarmTypeId": 6
    },
    {
        "ref": "5a6847972d3694372cad4fed",
        "alarmState": "WARNING",
        "occurrence": 9,
        "acked": false,
        "creationTime": "2018-01-24T08:45:11.742+00:00",
        "lastUpdateTime": "2018-02-04T08:52:05.384+00:00",
        "additionalInfo1": "20%",
        "deviceRef": "32611",
        "deviceAlarmTypeId": 1
    }
]

Retrieve LoRa statistics

Get frame statistics for a device

The following request retrieves frame statistics of the devices corresponding to the provided parameters:

GET /deviceFrameStatistics

You have to pass certain parameters in the path of the request. See below:

Example path parameters

      Response example

        Code copied




[
    {
        "type": "UPLINK",
        "date": "2020-01-31T13:00:00.000+00:00",
        "frameCount": 2,
        "payloadSize": 2,
        "baseStationRSSI": -38.2,
        "baseStationSNR": 2.6,
        "payloadReceivedOnTime": 2,
        "payloadReceivedLate": 0,
        "payloadReceivedOnTimeSize": 2,
        "payloadReceivedLateSize": 0,
        "averagePER": 0.0
    },
    {
        "type": "DOWNLINK",
        "date": "2020-01-31T13:00:00.000+00:00",
        "frameCount": 3,
        "payloadSize": 0,
        "payloadSentWithSuccess": 3,
        "payloadSentWithSuccessSize": 0,
        "payloadSentWithFailure": 0,
        "payloadSentWithFailureSize": 0
    }
]

Get health statistics for a device

The following request retrieves health statistics for all devices: GET /deviceHealthStatistics .

      Response example

        Code copied




{
    "initCount": 11,
    "activeCount": 55,
    "rfConnectionErrorCount": 0,
    "totalCount": 66
}

Application status message

The 4XX and 5XX status messages may contain additional application layer information. The Response may include an errorId field which can be used for detailed analysis. The latest known errors are listed below under 'Error ID codes'.

      Error response example

        Code copied





{
    "code": 400,
    "message": "Bad request: No ConnectivityPlan for ID: kpn-acc-ope-cs/often-geo-1919 and Operator: 24",
    "errorId": "OSS-214"
}
